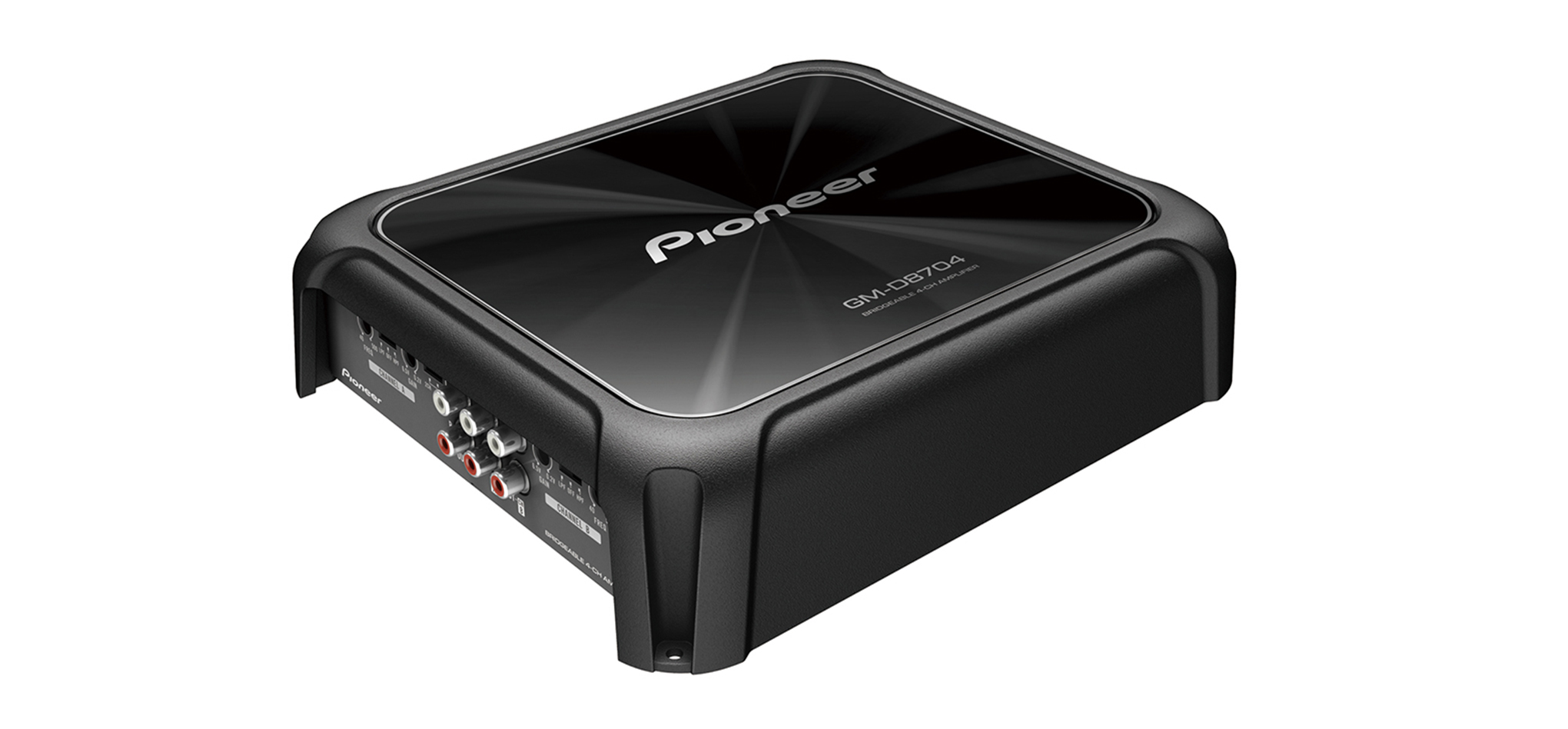

Pioneer GM-D8704

Pioneer GM-D8704 Võimendi 4x 200/300Wx4 4/2 ohm

Compact 4 Channel Power
An amplifier shouldn’t take up too much space, especially in your car. This Class-D amps might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.

Specifications

Speaker line input sensor
Speaker line input sensorconnect your existing OEM unit without the hassle of add-on adapters

Variable LPF
Variable LPFadjust your low-pass filter frequency for greater audio system flexibility

Variable HPF
Variable HPFadjust your high-pass filter frequency for greater audio system flexibility

Multi-block Terminal
Multi-block Terminalsmoothly connect up to 4 subs for high-power audio output

D-class
D-classenjoy first class sound and powerful volume on a versatile system at half the size of other units

Full specifications

Main Features
Variable LPF
D-class
Channel(s)      4 / 2 / 1
RCA terminals   yes
Speaker Terminals       Block-type
LPF     yes
HPF     yes
Maximum power
4 x 200W (4Ω)
4 x 300W (2Ω)
1200W Total
Continuous power output
4 x 100W RMS (4Ω)
4 x 125W RMS (2Ω)
4 x 150W RMS (1Ω)
2 x 300W RMS (4Ω bridged)
Frequency response      10 Hz - 50 Hz
Input level control     RCA (0.2V - 6.5V)
SP (0.8V - 16V)
Distortion      < 0.05 %
S/N ratio       > 95 dB
Chassis size (W x H x D)        252 x 60 x 215 mm
Crossover Frequency     40 - 500Hz (-12 dB/oct) Hz
Audio
Variable HPF
Connections
Multi-block Terminal
