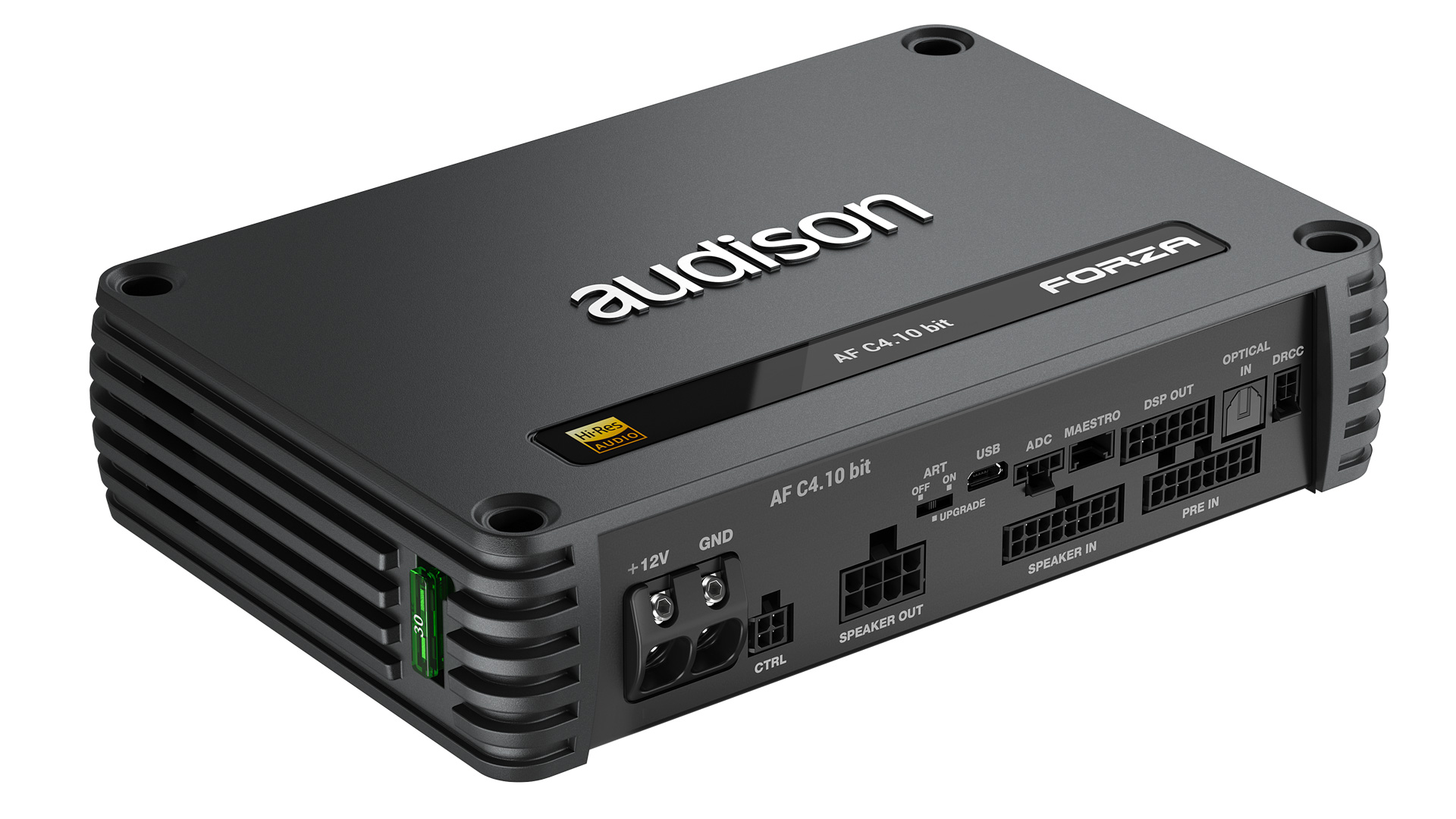

Audison AF-C4D

Audison AF-C4D

Saada kiri müüjale
Saadavus: Toode on laos
356.00 € 419.00 € -15%

Kiirülevaade

Audison AF-C4D 4-kanaliga võimendiAudison AF-C4D klass D 4 Channel 90W X 4 @ 4 Oomi autovõimendi    11 ÷ 15 VDC / 2 x 35 A    6.5 ÷ 17.5 VDC    14.4 VDC : 65 A    4 ÷15 VDC (1 mA)    Remote OUT: 6.5 ÷15 VDC (150 mA)    ART    1.5 VDC    RMS 14.4 VDC, 1% THD,4Ω: 81%    THD+N @ 1 KHz, 4Ω, 70% Rated Po ...
Saadaval olevate toodete tarneaeg on 2-4 tööpäeva pärast kliendi tellimuse tasumist (raha laekumist Akustika.EE OÜ pangakontole). Kui tellitud kaup pole pärast tellimuse esitamist saadaval või on ette näha viivitust tarneajas, võtame Teiega ühe tööpäeva jooksul ühendust.

Järelmaksu võimalused

ESTO Järelmaks
Liisi järelmaks
Arvuta kuumakse
− +

Seotud Tooted

Alpine R2-A60F

Alpine R2-A60F

337.25 € 355 €
Ground Zero GZTA 4230X-B

Ground Zero GZTA 4230X-B

229 €
Ground Zero GZTA 4125X-B

Ground Zero GZTA 4125X-B

159 €
Alpine KTA-450

Alpine KTA-450

191.19 € 202 €
Pioneer GM-D9704

Pioneer GM-D9704

322 €
Pioneer GM-D8704

Pioneer GM-D8704

257 €
Ground Zero GZFA 4.150

Ground Zero GZFA 4.150

159 €
Ground Zero GZFA 4.100

Ground Zero GZFA 4.100

139 €

    Audison AF-C4D 4-kanaliga võimendi

    Audison AF-C4D klass D 4 Channel 90W X 4 @ 4 Oomi autovõimendi

        11 ÷ 15 VDC / 2 x 35 A
        6.5 ÷ 17.5 VDC
        14.4 VDC : 65 A
        4 ÷15 VDC (1 mA)
        Remote OUT: 6.5 ÷15 VDC (150 mA)
        ART
        1.5 VDC
        RMS 14.4 VDC, 1% THD,4Ω: 81%
        THD+N @ 1 KHz, 4Ω, 70% Rated Power: 0.03%
        1 kHz , 4Ω, 2 VRMS: 95
        Bandwidth -3 dB: 10 Hz ÷ 42 kHz
        S/N Master sisend: 98 dBA
        S/N Optiline sisend: 105 dBA
        Miinimum takistus: 8Ch: 2Ω
        4Ch – (Bridge 1/2; 3/4; 5/6; 7/8): 4Ω
        RMS 14.4 VDC, 1% THD:4 Ch @ 4Ω: 90 W x 4
        4 Ch @ 2Ω: 150 W x 4
        2 Ch (sillatuna 1/2; 3/4) @ 4Ω: 300 W x 2
        Väljundvõimsus 4Ω, 1% THD+N, 14.4 V: 90 W x 4
        SN: 80 dB
        Pre-In (6 Ch): 0.6 ÷ 6 VRMS (15 kΩ Imp.)
        Kõlar-sisend (6 Ch + additional 4 Ch with optional F4IN card): 2.2 ÷ 22 VRMS (5 Ω Imp.)
        Digital sisend: 1 x Optical S/PDIF; Max 192 kHz / 24 bit + 1 x Optical/Coaxial S/PDIF with optional F2O card
        DSP Preout (6 Ch): 5V RMS
        Analog Devices ADAU1467 automotive qualified audio processor.
        Processing @ 96 kHz.Analog Devices 3 x ADAU1978 (4ch) and ADAU1966A (16ch) A/D and D/A converters (24 bit/192 kHz) providing very high level performance
        Filter: Full / High-Pass / Low-Pass / Band-Pass
        Filter mode and slope: Linkwitz-Riley @ 12/24/36/48 dB/Oct.
        Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
        Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
        Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
        QLP @ 6 dB/Oct.
        Crossover sagedus: 20 Hz ÷ 20 kHz
        Phase: 0° / 180°, All-Pass filters
        Analog Input Equalizer (20 Hz ÷ 20 kHz): 12 Biquad + Delay
        Output Equalizer: Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
        Input and Output Real-Time Audio Monitor: RTA
        Audison DRCC port: DRCC sisend
        Micro USB 1.1 / 2.0 / 3.0
        Software/ PC requirements: Windows 10, Windows 11
        Töötemperatuuri: 0 °C to 55 °C
        Mõõdud: 200 x 47 x 134 (mm)
